JH6000HQ1-D4 SF6 Mixed Gas Comprehensive Detector
Detect the main products of cracking of insulating materials inside electrical equipment: SO2, SOF2, H2S, CO, HF, N2O, etc
Detect SF6 purity, SF6/N2 mixing ratio, and gas humidity in SF6 electrical equipment
Widely used in electric power, railway, metallurgy, petrochemical and SF6 electrical equipment manufacturing industries
name | component | parameter |
minimum detectable quantity | SO2+SOF2、H2S、HF | ≤0.1μL/L |
N2O | ≤ 0.5μL / L | |
CO | ≤0.5μL/L | |
SF6 | 0.05% | |
N2 | 0.05% | |
O2 | 0.001% | |
dew point | 0.1℃ | |
precision | SO2+SOF2、H2S、HF | measured value is ≤ 10 μL/L, error ≤ ± 0.5 μL/L measured value> 10 μL/L, error ≤ ± 5%. |
CO | measured value ≤ 50 μL/L, error ≤ ± 2.0 μL/L measured value > 50 μL/L, error ≤ ± 4% | |
N2O | ≤ ± 1 μL/L or ± 5% (whichever is larger) | |
SF6 | ≤±0.5% | |
N2 | ≤±0.5% | |
O2 | ≤±0.05% | |
dew point | ≤±1.0℃ |
Related recommendations

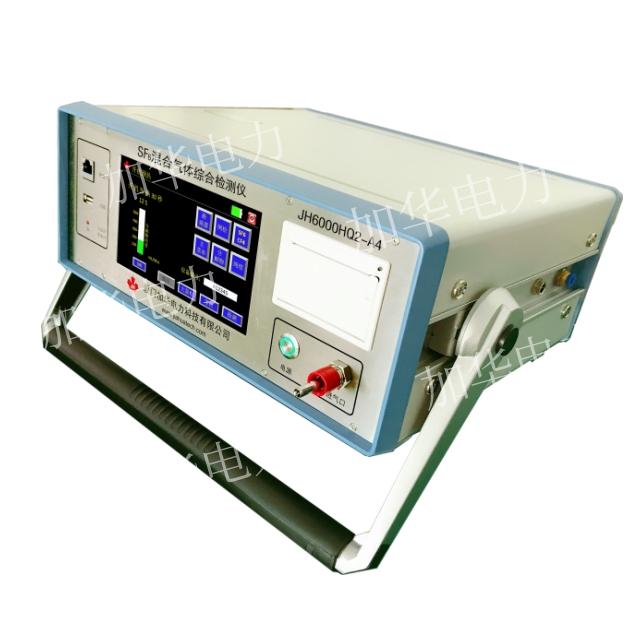

JH6000HQ2-A4 SF6 gas mixture comprehensive detector
